탱크 바닥 밸브

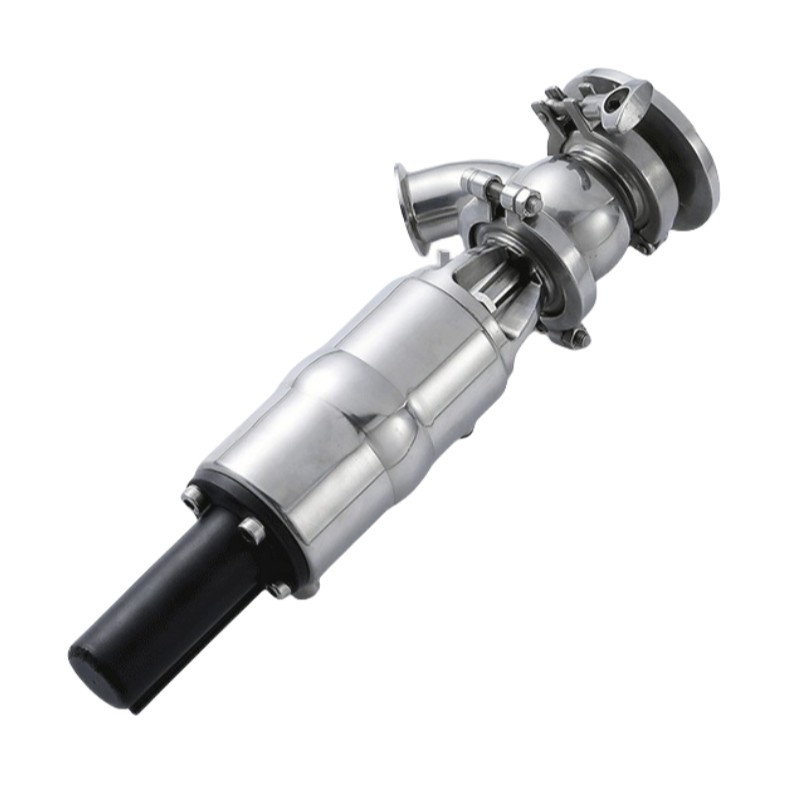

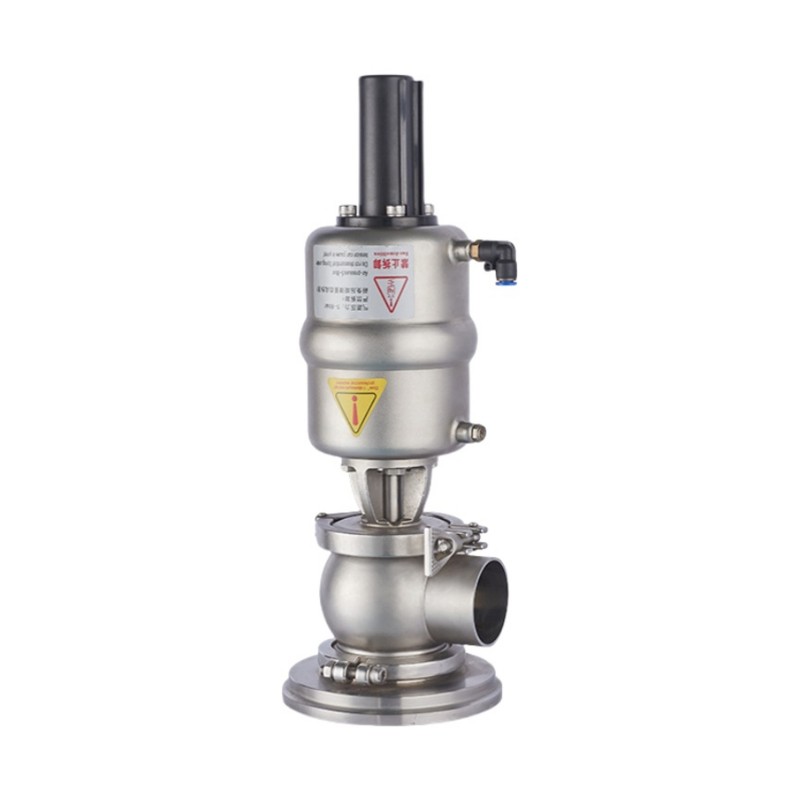

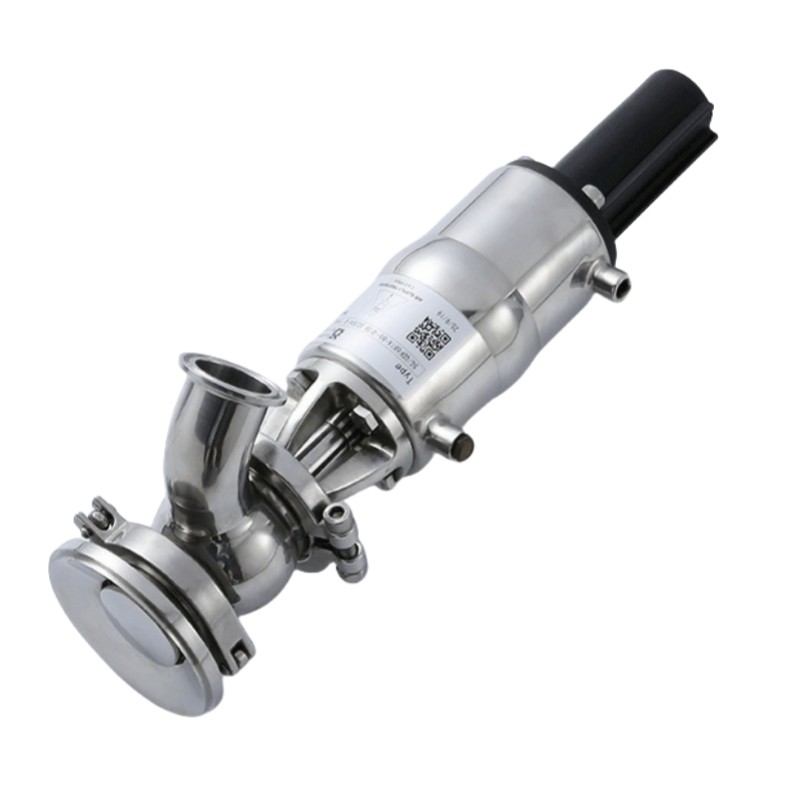

GD3 시리즈 탱크 바닥 밸브 – 고성능, 위생적인 ​​공압식 시트 밸브

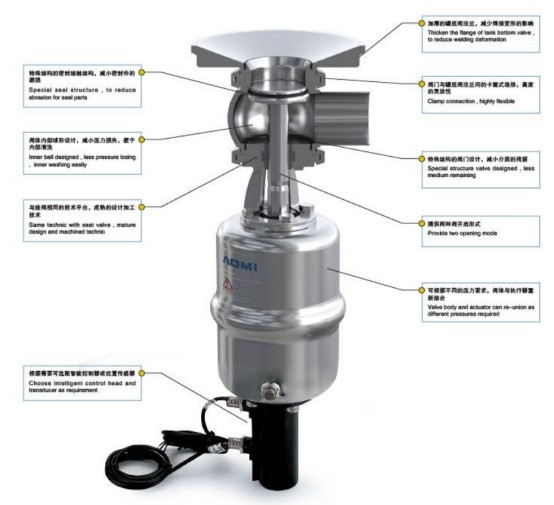

The GD3 Tank Bottom Valve is a high-performance, pneumatically actuated seat valve engineered for critical hygienic applications that require reliable drainage and cleanability at the base of process tanks. Based on a robust and proven single-seat valve platform, this valve features a compact, space-saving design with minimal moving parts, ensuring exceptional reliability, low maintenance, and long operational life.
It is ideal for sanitary industries such as brewing, dairy, beverage processing, and pharmaceutical manufacturing, where hygienic operation and ease of service are essential. Actuated remotely via compressed air, the GD3 valve consists of a valve unit and a tank bottom flange. To enhance seal longevity and minimize wear, the seal compression is achieved through precision-engineered metal-to-metal contact.
두 가지 유연한 구성으로 사용 가능:

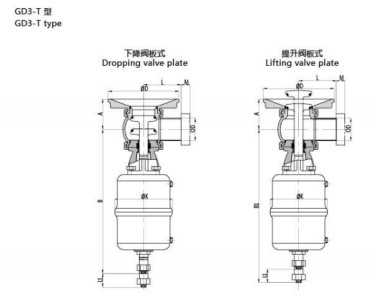

GD3-T 유형 - 클램프 연결
GD3-T 버전은 밸브와 탱크 플랜지 사이에 클램프형 연결이 특징입니다. 클램프를 약간 풀면 밸브 본체를 원하는 위치로 회전할 수 있어 유연한 정렬이 가능하고 유지보수 접근이 용이합니다. 탱크 플랜지는 탱크에 직접 용접되어 위생적이고 누출 없는 밀봉을 보장합니다.
GD3-F 유형 - 볼트 연결
The GD3-F version utilizes a bolted connection, allowing for 360° rotation of the valve body for optimal positioning and installation flexibility. T형과 마찬가지로 탱크 플랜지는 탱크 구조에 영구적으로 용접됩니다.
Both configurations offer dead-leg-free flow paths and full CIP/SIP compatibility and are designed to support strict sanitary process environments. The GD3 valve is a versatile, maintenance-friendly, and automation-ready solution for modern clean-in-place and drain valve applications.

매개변수
